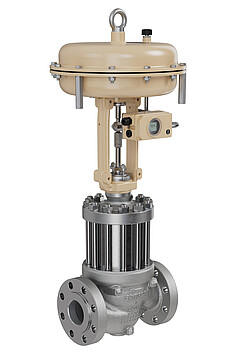

261GR - pneumatic - ANSI

261GR - pneumatic - ANSI

Globe valve

VALVE STYLE
Globe valve

USAGE

  • On/off service
  • High-pressure service
  • Throttling service

VERSION
ANSI

MEDIUM TEMPERATURE
-50 to 425 °C / -58 to 797 °F

SUPPLY
Pneumatic

VALVE SIZE
NPS 1 to NPS 3

PRESSURE RATING
Class 300 to Class 900

LINING
without

Special features

  • 3-, 4- or 6-stage CDST plug fully replaceable in the field
  • Body made of cast steel or cast stainless steel
  • Metal seal or high-performance metal seal
  • Balanced to handle high differential pressures

Accessories

  • - - -

Options

  • - - -

261GR - pneumatic - ANSI can be combinated with the following actuations:

Special features:

  • Single-acting linear actuator with rolling diaphragm and internal springs
  • Diaphragm areas from 120 to 2x2800 cm²
  • Low overall height
  • Powerful thrust at high stroking speed
  • Low friction
  • Various bench ranges by varying the number of springs or their compression
  • No special tools required to change the bench range or reverse the direction of action (also version with handwheel)

Special features:

  • Single-acting linear actuator with rolling diaphragm and internal springs
  • Diaphragm areas from 120 to 750 cm²
  • Direct attachment of accessories on additional yoke with concealed travel pick-off
  • Low overall height
  • Powerful thrust at high stroking speed
  • Low friction
  • Various bench ranges by varying the number of springs or their compression
  • No special tools required to change the bench range or reverse the direction of action (also version with handwheel)

Information

  • T 8006-GR

    SMS HG-1 and SMS HG-7 Pneumatic Control Valves
    Type 261GR Globe Valve
    ANSI version
    [EN][DE]

Support

  • EB 8006-GR

    Type 261GR Valve
    ANSI version
    [EN][DE]

Certificates

Only up-to-date documents are shown in the product selector. Check the documentation site for a list of all documents available.
