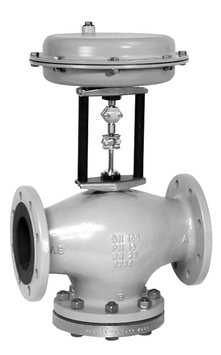

3260 - pneumatic - DIN
Globe valve
VALVE STYLE
Globe valve
USAGE
- Low-pressure service
- Throttling service
VERSION
DIN
MEDIUM TEMPERATURE
5
to 150 °C /
41
to
302 °F
SUPPLY
Pneumatic
VALVE SIZE
DN 65
to
DN 125
PRESSURE RATING
PN 16
LINING
without
Special features
- Consisting of globe valve and actuator
Accessories
- Type 2 NI Strainer
Options
- Special version for oils
3260 - pneumatic - DIN can be combinated with the following actuations:
Special features:
- Single-acting linear actuator with rolling diaphragm and internal springs
- Diaphragm areas from 120 to 2x2800 cm²
- Low overall height
- Powerful thrust at high stroking speed
- Low friction
- Various bench ranges by varying the number of springs or their compression
- No special tools required to change the bench range or reverse the direction of action (also version with handwheel)
Special features:
- Single-acting linear actuator with rolling diaphragm and internal springs
- Diaphragm areas from 120 to 750 cm²
- Direct attachment of accessories on additional yoke with concealed travel pick-off
- Low overall height
- Powerful thrust at high stroking speed
- Low friction
- Various bench ranges by varying the number of springs or their compression
- No special tools required to change the bench range or reverse the direction of action (also version with handwheel)
Special features:
- Consisting of two diaphragm cases, a rolling diaphragm, and internal springs
- Suitable for attachment to SAMSON Type 3214, Type 3260, and Series V2001 Valves
- Version with directly attached Type 3725 Positioner or prepared for the attachment of Series 3730 Positioner (15 or 30 mm rated travel)
- Actuated by 4 to 20 mA
